Sewio

Sewio is an indoor tracking data, using ankers and tags. This IO Connection is able to take in this tracking data.

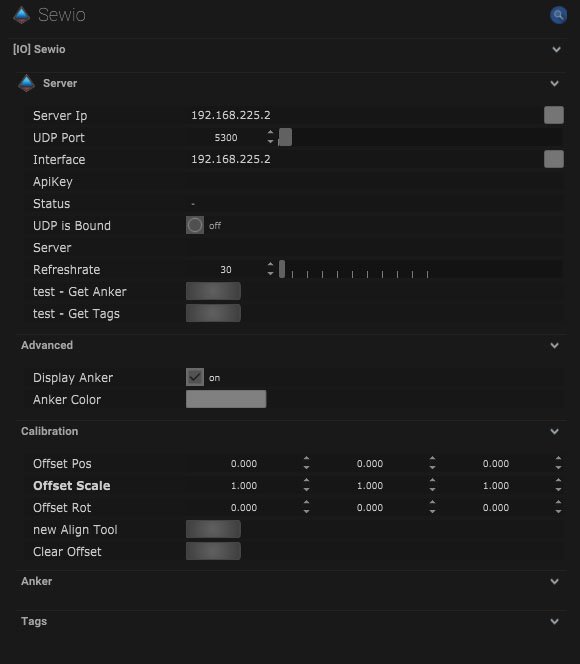

Sewio Setup

Server

Name Description
Server IP This is where the IP address of the server can be added.
UDP Port This is the port number that will receive UDP data.
Interface This is the IP address of the local network interface (NIC) which should be used for this connection.
ApiKey This is where the application programming interface key can be input.
Status The connection status will be displayed here.
UDP is Bound This will be on when the IO connection is bound to a network.
Server Server name will be displayed here when connected.
Refreshrate The refresh rate of the data can be altered.
Test – Get Anker Pressing this button will test the communication of the anker.
Test – Get Tags Pressing this button will test the communication of the tags.

Advanced

Name Description
Display Anker When on, the anker will be displayed within the scene.
Anker Colour The colour of the anker can be changed. Clicking the colour box opens a colour picker with RGB (red, green, blue) and alpha control.

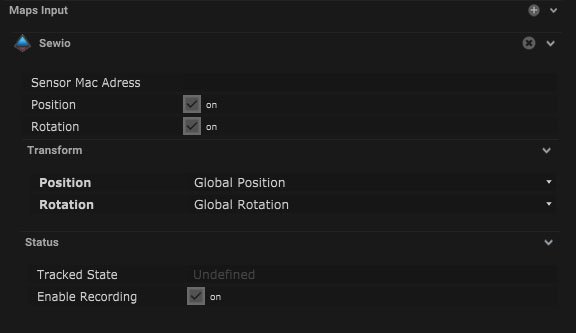

Mapping

Input

Name Description
Sensor Mac Address The address that the data will be sent to can be added here.
Position When on, the position of the object will be affected.
Rotation When on, the rotation of the object will be affected.

Transform

Name Description
Position
  • Global Position – The global position will be output.
  • Relative Position – The relative position will be output.
  • Global Effected Position – The global effected position will be output.
Rotation
  • Global Rotation – The global rotation of the object will be output.
  • Relative Rotation – The relative rotation will be output.
  • Global Effected Rotation – The global effected rotation will be output.

Status

Name Description
Tracked State
  • Undefined – When tracker does not have a map input.
  • Inactive – When the tracker has a follow object input map.
  • Active – When the tracker has a target object map input.
Enable Recording When on, the tracking data can be recorded.

Compatible input objects
