This is a native input for Blacktrax tracking data.
!SP for now only works when Blacktrax is not sending out zones data. This needs to be disabled on Blacktrax side.

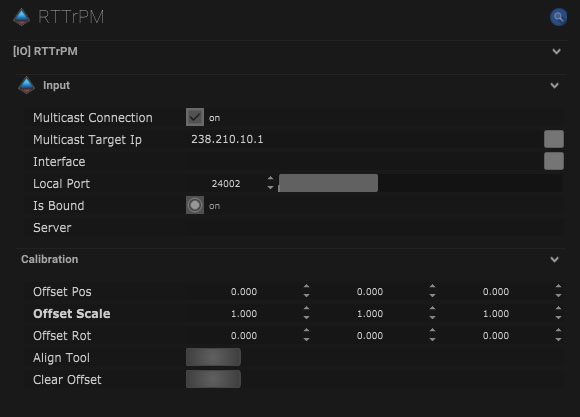

Blacktrax (RTTrPM) Setup
Input
Name |
Description |
---|
Multicast Connection |
When on, data can be sent to multiple recipients. |
Multicast Target IP |
This is where the IP address of the multicast can be entered. |
Interface |
Integer – These are whole numbers. |
Local Port |
This is the port that will receive data from other devices. |
Is Bound |
This will be on when the IO connection is bound to a network. |
Server |
Server name will be displayed here when connected. |
![]()
*Check the Calibration/Allignment Tool here.

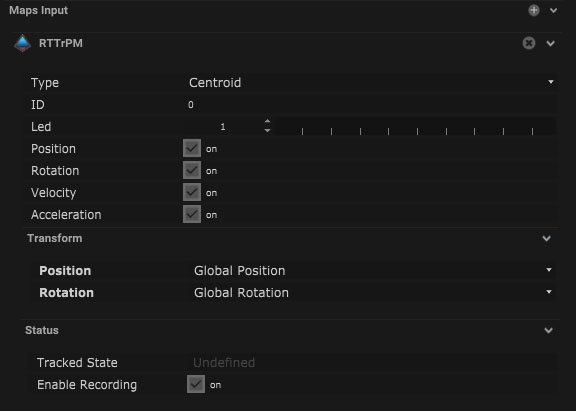

Mapping
Input Mapping
Name |
Description |
---|
Type |
- Centroid – The position of the object will be affected by the center of the blacktrax data.
- LED – This will handle the individual LED tracking data separately.
|
ID |
The ID of the point can be added and the positional data from that point will be used. |
Led |
This is the number of the LED point. |
Position |
When on, the position of the object will be affected. |
Rotation |
When on, the rotation of the object will be affected. |
Velocity |
When on, the velocity of the object will be affected. |
Acceleration |
When on, the acceleration of the object will be affected. |
Transform
Name |
Description |
---|
Position |
- Global Position – The object will be affected by the global position of the data.
- Relative Position – The position of the object will be relative to the tracking data.
- Global Effected Position – The position of the object will be dependent on the global effected position.
|
Rotation |
- Global Rotation – The object will be affected by the global rotational data.
- Relative Rotation – The rotation of the object will be relative to the tracking data.
- Global Effected Rotation – The rotation of the object will be dependent on the global effected rotation.
|
Status
Name |
Description |
---|
Tracked State |
- Undefined – When tracker does not have a map input.
- Inactive – When the tracker has a follow object input map.
- Active – When the tracker has a target object map input.
|
Enable Recording |
When on, the tracking data can be recorded. |
![]()
