The disk is a two-dimensional shape that resembles a circle.
Coordinates
Name | Description |
---|---|
Position | This will move the object along X, Y and Z axis in the local space. |
Scale | Scale of the coordinate system. To scale the Object check the settings under “Display” |
Rotation | Rotation of the object along X, Y and Z axis. |

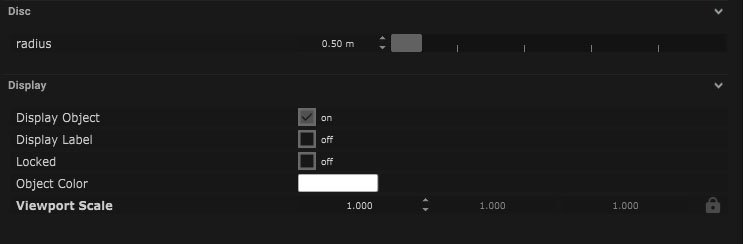

Disk Dimensions
Name | Description |
---|---|
Radius | Distance from the center of the object to the edge of the circle in meters. |
Display
Name | Description |
---|---|
Display Object | If ticked, the object will be visible in the scene. If un-ticked, the object will not be visible. |
Display Label | When on, there will be a label displayed next to the object. |
Locked | When un-ticked, it activates keyboard shortcuts – pressing ‘E’ allows you to move and ‘R’ rotate. |
Object Colour | Double click the colour block and this will open a colour picker. This can be used to change the object display colour. |
Viewport Scale | Dimensions of the object in the viewport in meters. |
Display Settings Tutorial

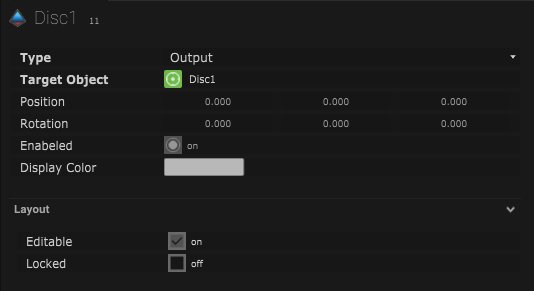

Node Based
The object can be controlled and used as a node. The node is created by clicking and dragging the parameter on to the board.
Name | Description |
---|---|
Type |
|
Target Object | This is the object that will either be affected by the incoming values or output information. |
Position | The directional XYZ values will be displayed here. |
Rotation | The rotational XYZ values will be displayed here. |
Enabled | When on, the parameter is active and enabled. |
Display Colour | This colour block can be changed by changing the parameter. |
Layout
Enabled | When on, the parameter is active and enabled. |
Locked | When on, the node is locked into its position on the board. |
