The spline ranger converts input values into output values between a range set within the node and at a rate determined by the type of spline.

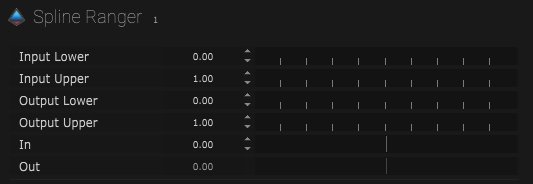

Setup
| Name | Description |
|---|---|
| Input Lower | The lower value of the input range can be set here. |
| Input Upper | The higher value of the input range can be set here. |
| Output Lower | The lower value of the output range can be set here. |
| Output Upper | The higher value of the output range can be set here. |
| In | This is the input for the node. The value will be determined by the input ranges. |
| Out | This is the output of the node. The value will be determined by the output ranges. |

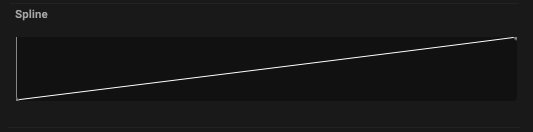

Spline
The spline can be altered to change the curve and steepness of the increase in the output values.
Layout
| Name | Description |
|---|---|
| Position | The position of the node on the board can be set using XY values. |
| Size | The size of the node, width and height can be set here. |
