Serial protocol is a protocol that transmits sequential data.
This protocol is node-based, this worked with input and output messages within the board.

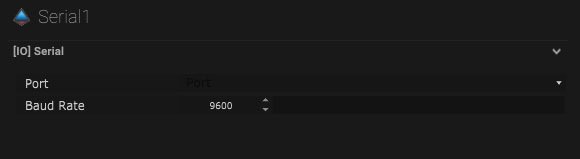

Serial Setup
| Name | Description |
|---|---|
| Port | This is the port that the data package will be sent to. |
| Baud Rate | This is the rate at which information is transferred. |
Serial Mapping

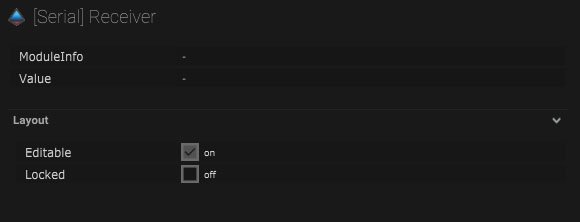

Maps In/Serial Reciever
| Name | Description |
|---|---|
| Module Info | The input module information will be displayed here. |
| Value | The value of this module will be displayed here and can be connected to other objects. |
Layout
| Name | Description |
|---|---|
| Editable | When on, the node is editable. |
| Locked | When on, the node is locked into its position on the board. |

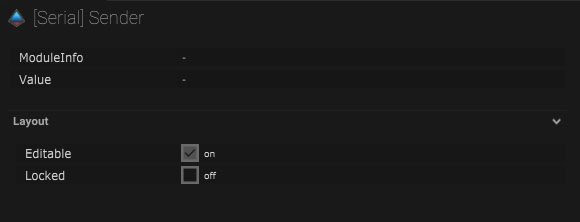

Maps Out/Serial Sender
| Name | Description |
|---|---|
| Module Info | The output module information will be displayed here. |
| Value | This is the value input from an SP message that will be output. |
Layout
| Name | Description |
|---|---|
| Editable | When on, the node is editable. |
| Locked | When on, the node is locked into its position on the board. |
