PSN OUT

This is the output protocol of PosiStageNet which is a specific protocol for moving objects.

PSN OUT Setup

Output

Name Description
Local Port This is the port that will receive data from other devices.
Multicast Connection When on, data can be sent to multiple recipients.
Multicast Target IP This is where the IP address of the multicast can be entered.
Interface This is the IP address of the local network interface (NIC) which should be used for this connection.
Server Name The server name can be added here.
Use in loopback When on, the data will be looped back on the IP network.
Is Connected When on, PSN data is being output.
Rotation Type
  • Orientation – This is the rotation of an object on XYZ axis.
  • Euler – Rotation will be based on a 3D rigid body rotating on a point.
Up
  • Y-Up – When the positional data is being output the Y axis will be up.
  • Z-Up – When the positional data is being output the Z axis will be up.
Frequence This is the output frequency of the data.

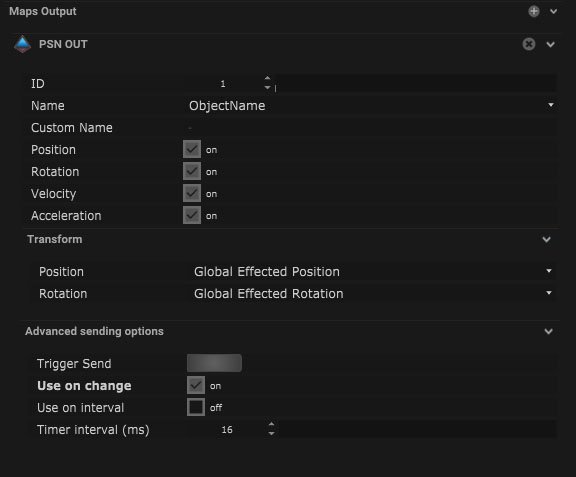

Mapping

Output

Name Description
ID The ID number of the object can be added here.
Name
  • Object Name – The object is output with its original object name.
  • ID – The object is output with an ID name.
  • Custom – The object is output with a custom name.
Custom Name The custom name can be added here.
Position When on, the position of the object will be output.
Rotation When on, the rotation of the object will be output.
Velocity When on, the velocity of the object will be output.
Acceleration When on, the acceleration of the object will be output.

Transform

Name Description
Position
  • Global Position – The global position will be output.
  • Relative Position – The relative position will be output.
  • Global Effected Position – The global effected position will be output.
  • Target Position – The target position will be output.
Rotation
  • Global Rotation – The global rotation of the object will be output.
  • Relative Rotation – The relative rotation will be output.
  • Global Effected Rotation – The global effected rotation will be output.

Advanced sharing options

Name Description
Trigger Send Pressing this button will send out a trigger value.
Use on Change When on, the trigger will be output in a time interval.
Use on Interval The time interval can be altered in milliseconds.
Timer Interval (ms) The time interval can be altered in milliseconds.
